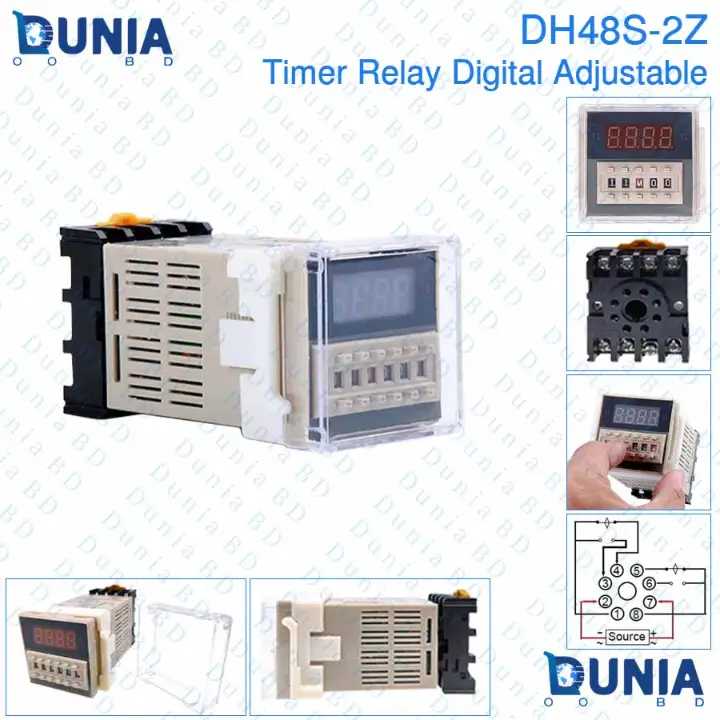

DH48S-2Z Digital Display Time Delay SPDT Timer Relay Cycle Control Device With Socket Base
৳ 0
Color Family:
1
0
Delivery Options
Standard Delivery
Shipping from Noakhali
Cash on Delivery Available
Service & Warranty
Weight: 200 gm
Brand: No Brand
Return Policy
7 Days Returns
Warranty
Warranty: warranty not available
Box Content
DH48S-2Z time relay
Highlights
- Dimension 30 × 20 × 15 cm
- DH48S-2Z time relay model number legend
- Parent Model Number: DH48S-2Z
- Quality: U: Usual quality, H: High quality
- Supply voltage: 220VAC: 220VAC, 110VAC: 110VAC, 24V: 24VAC/DC, 12V: 12VAC/DC, 380VAC: 380VAC, 36VAC: 36VAC
- Supply voltage: 36, 110, 220 or 380 Vac, 50/60 Hz; 12Vac/Vdc, 24Vac/Vdc
- Tolerance: -15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage
- Power consumption: 2W max

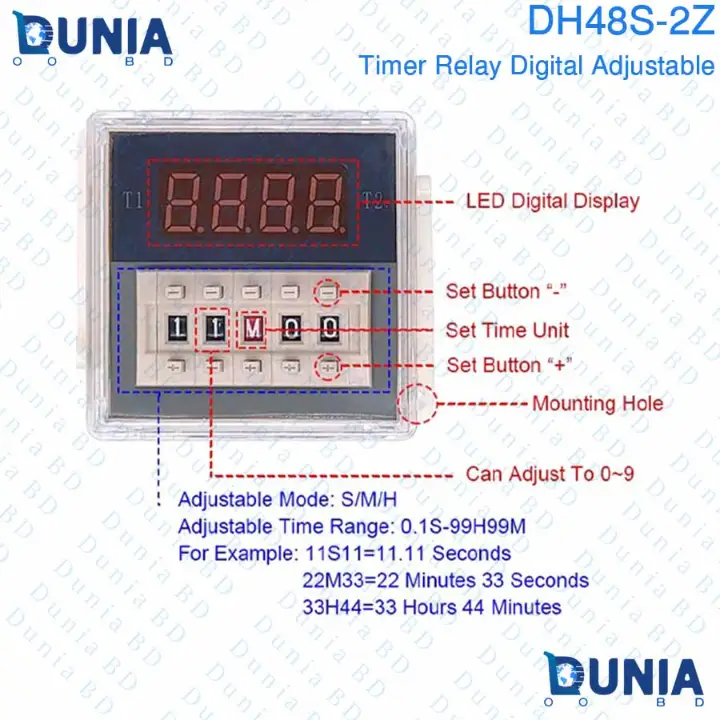

- Setting method: Dial switch
- Indication method: 8-segment 4-digital display

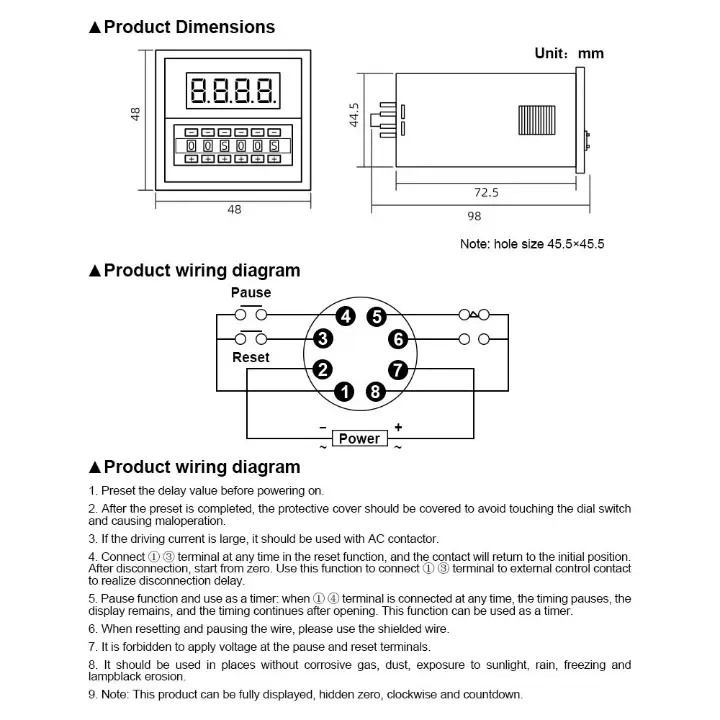

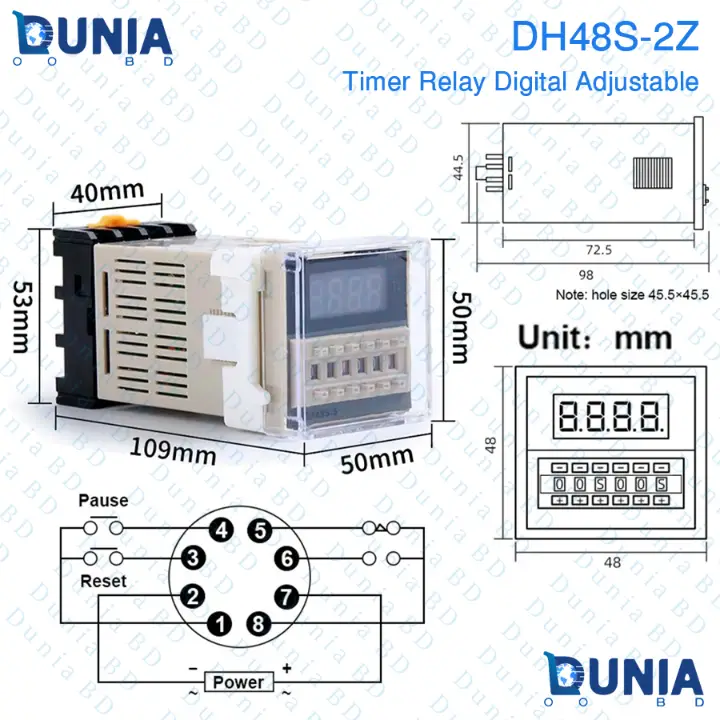

- External dimensions: 48x48x97.4 mm
- Perforate dimensions: 45 10x45 10 mm
- Contact rating: 3A@250Vac, 5A@28Vdc
- Repeat accuracy: ±0.3%, ±0.05 sec
- Setting error: ±0.5%, ±0.05 sec
- Termination : 8 pins
- Mounting: Panel, din rail
- Matched socket: PF083A, PF083A-E
- Mechanical life: 1x106
- Electrical life: 1x105
- Operating temperature: 0 to 50 ℃ (32 to 122 ℉)
- Operating humidity: 95% RH max, non-condensing
- Product detail: DH48S time relay detail
- Alias name: DH48S digital timer
Description
General Details: Model number: DH48S

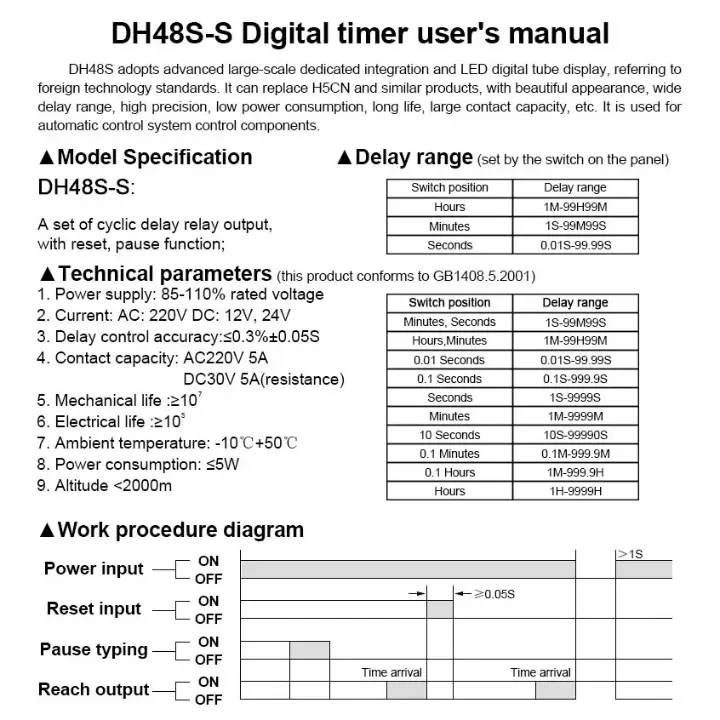

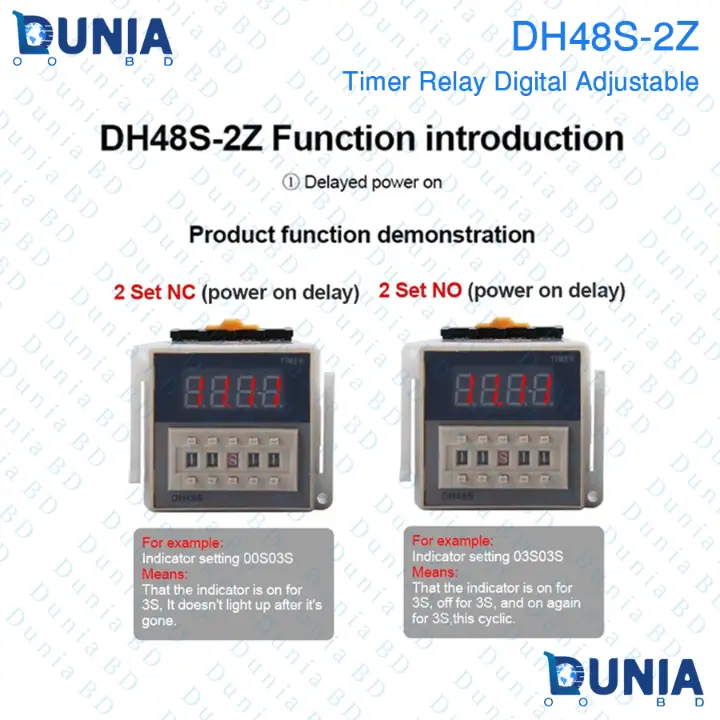

Operating mode: Setting examples: 00S01 mean 0.01s, 99M99 mean 99min99s, 99H99 mean 99h99min. The GATE contact can connect self-lock switch, the RESET contact can connect reset switch. DH48S-1Z: Set 05S25S, when power on, pass 5.25s, the relay switch on, and not switch off for the rest time. DH48S-2Z: Set 05S25S, when power on, pass 5.25s, the relay switch on, and not switch off for the rest time. DH48S-S: Set 05S05S, switch on for 5s, then switch off for 5s, then recycle. Set 00S-05S, switch on for 5s, then switch off for the reset time.
What is the price of DH48S-2Z Digital Display Time Delay SPDT Timer Relay Cycle Control Device With Socket Base in Bangladesh?
The latest price of DH48S-2Z SPDT Digital Display Timer Relay in Bangladesh is starts from Price: ৳756.50 for 1Pcs Relay. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.
Buy DH48S-2Z Digital Display Time Delay SPDT Timer Relay Cycle Control Device With Socket Base in Bangladesh from online at Dunia.com.bd.
In Bangladesh, you can get original DH48S-2Z SPDT Digital Display Timer Relay From Dunia.com.bd . We have few collection of latest High Capacity Relay to purchase. Order Relay & Contactor Online at our website Or Visit our warehouse to get your product at lowest price.
Operating mode: Setting examples: 00S01 mean 0.01s, 99M99 mean 99min99s, 99H99 mean 99h99min. The GATE contact can connect self-lock switch, the RESET contact can connect reset switch. DH48S-1Z: Set 05S25S, when power on, pass 5.25s, the relay switch on, and not switch off for the rest time. DH48S-2Z: Set 05S25S, when power on, pass 5.25s, the relay switch on, and not switch off for the rest time. DH48S-S: Set 05S05S, switch on for 5s, then switch off for 5s, then recycle. Set 00S-05S, switch on for 5s, then switch off for the reset time.
